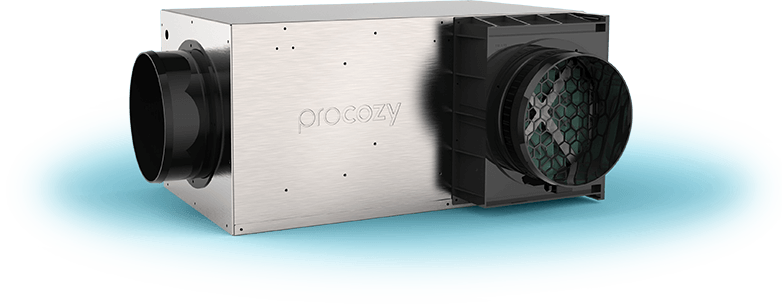

BUILT-IN TYPE

Use with air conditioning ducts for better management
and shared access panel

Have you chosen
the right dehumidifier?

Contrary to compressor type dehumidifiers, desiccant dehumidifiers utilize highly efficient and environmentally friendly desiccant instead of refrigerant. The honeycombed desiccant absorbs the humidity from the air, which after passing through a heater, goes into a heat exchanger and condenses into water. The water is then collected in the water tank while dry air is returned into the room.

25°/ 40%RH, Average 9L /day
25°/ 80%RH, Average 10L /day

Designed to be Concealed
Easily Blending into
Your Current Interior Design

In order to help provide a more comforting lifestyle, our product embraces the closed concept in design. The closed concept design features built-in hydraulic pump, together with a water level sensor, provides consumers with a brand new choice in dehumidifiers and allows for direct installation inside your ceiling.

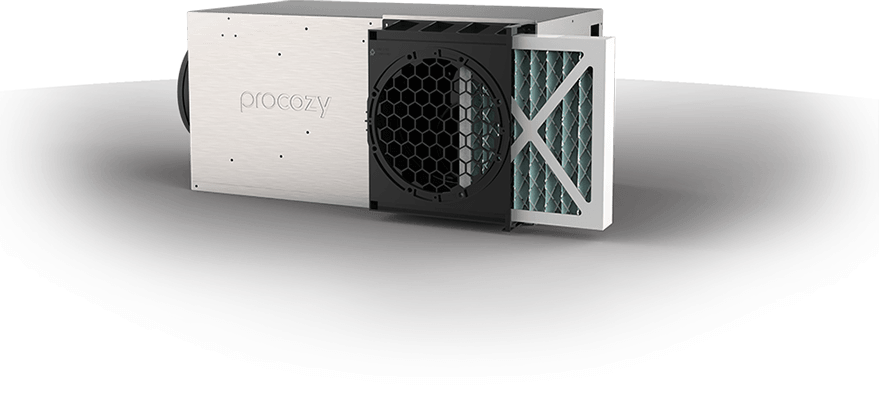

Air Filter Installation Made Easy
Because We Care

Needless to Worry About
Where Your Access Panel or Return Air Vent is

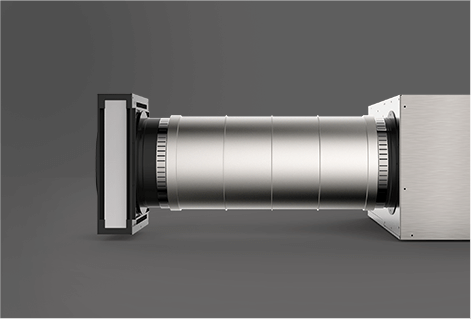

Embedded

Directly attached to the side of the unit and
can be attached to air conditioning ducts.

External

Attach air conditioning duct to theunit, then
attach filter box.

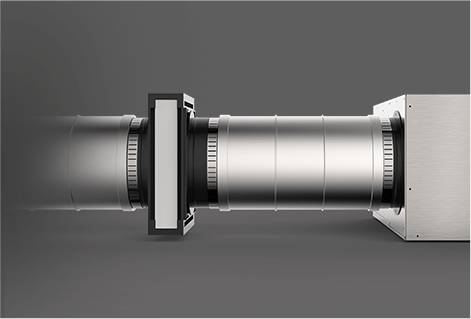

Extended

After attaching air conditioning ducts to the unit,
the filter box can be attached with air conditioning
ducts on either side.

Built-in Intelligent Software
Providing Real-Time
Temperature and Humidity

Our product comes with a dedicated remote control. This allows the user to be in control of the temperature, humidity and dehumidification status at any given time. When it comes to detecting humidity and temperature, our unit uses a highly sensitive digital sensor. A simple pick-up or waving motion activates the remote from standby, due to the accelerometer that’s inside waking up the LCD display, allowing for immediate humidity and temperature information.

  • Automatic
    Eco
    Mode

    When the desired humidity level has been reached, our units automatically go into standby to save energy cost.

  • Real-Time
    Environmental
    Humidity and Temperature
    Detection

    Built-in high precision digital humidity and temperature sensor for real-time humidity and temperature detection.

  • Features
    Accumulated
    Water Displacement
    Amount Logging

    Our independent flow meter allows for water displacement amount logging throughout our unit’s operation.

LEARN MORE

Ultra-Low
Humidity Capability
Suitable for Any
Design Requirements

ProCozy® Professional Humidity Control and Air Purifying System Supports relative humidity range from≤1%RH～ 70%RH, not only for normal household and office space, but also suitable for dressing room, private collections, electronics storage, file storage, hotels, etc. Our system is also suitable for laboratories, manufacturing plants, and other professional applications, which require more stringent humidity control.

Different models
for different needs



Standard    Model：40%RH～70%RH

Industrial    Model：10%RH～70%RH

Specialized Model：≤1%RH～70%RH

Proprietary Technology
Top of the Line Component

Specially designed water flow
meter for accurate
displacement measurement Japanese made zeolite desiccant rotor allowing high efficiency no matter the atmospheric temperature Built-in high precision digital humidity and temperature sensor for real time humidity and temperature reading Utilizes high efficient DC inverter motor for efficiency and quietness
Our blower, pump and internal circulation motors utilize top quality sealed type ball bearings from Japan’s NMB. Our motor axles are constructed with SUS304 stainless steel, providing better efficiency and extending the lifetime of the product Stainless steel casing for rust resistance, corrosion resistance and high temperature tolerance properties Exclusive anemometer designed to maintain constant airflow and maximize the life expectancy of the air filter Customized air diffuser effectively directs air flow evenly for increased dehumidification efficiency Independently designed centrifugal blower, producing high air pressure while maintaining ultraquiet characteristics, provides effective airflow Ditching traditional mechanical water level sensors, our in-house designed system accurately detects water level and automatically pumps water up to 2.5 meters high. No more emptying out the water tank Super thin heat exchanger wall measuring only 0.2mm in thickness, increasing surface area for better heat exchange and improved energy efficiency ASHRAE standard MERV 11 and MERV 13 filters remove PM 2.5 from the atmosphere effectively

Intelligent Sensors
Providing Multi-Level Protection

ProCozy® provides all-around safety protection so that you know you are in good hands.

  • Flame Retardant
    Plastic UL-94

  • Thermal Fuse

  • Desiccant Rotor
    Rotation Detection

  • FR-4 Standard PCB

  • Mainboard FuseM
    (Short-circuit protection)

  • Relay VDE
    Safety Mark

  • Real-Time Heater
    Temperature
    Measurement

  • Power Source with
    OVP and OPP

Technical Specifications

ProCozy® Professional Humidity Control and Air Purifying System

  格柵式 全隱式
除濕方式 除濕輪式 除濕輪式
除濕能力
25o C / 80% RH 25oC / 40% RH
10 L / 日 9 L / 日
10 L / 日 9 L / 日
最大風量 350 [ m3/h ] 350 [ m3/h ]
工作範圍
室溫 相對濕度
1 ～ 40 oC 0 ～ 100 %RH
1 ～ 40 oC 0 ～ 100 %RH
適用電壓 (AC) 220/50-60, 110/50-60 [ V/Hz ] 220/50-60, 110/50-60 [ V/Hz ]
額定最大消耗功率 0.85 [ kW ] 0.85 [ kW ]
工作範圍
靜音模式 正常模式 加強模式 排水時
42 [ dB ] 48 [ dB ] 52 [ dB ] 50 [ dB ]
42 [ dB ] 48 [ dB ] 52 [ dB ] 50 [ dB ]
濾網 11, 13 [ MERV ] 11, 13 [ MERV ]
外型尺寸 長 800 x 寬 370 x 高 303 [ mm ] 長 615 x 寬 370 x 高 303 [ mm ]
本體重量 19 [ kg ] 17 [ kg ]
